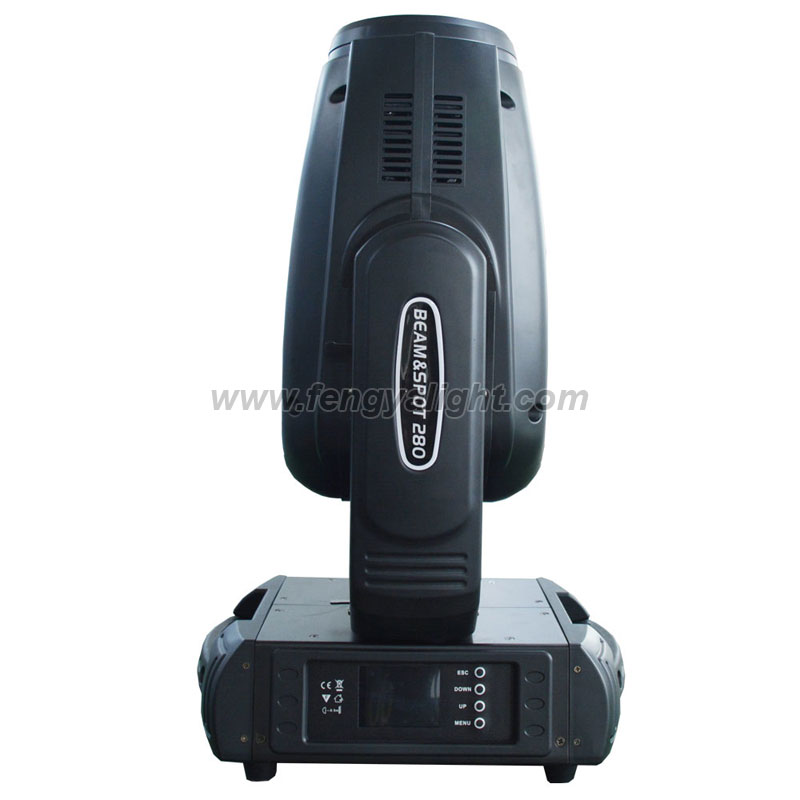

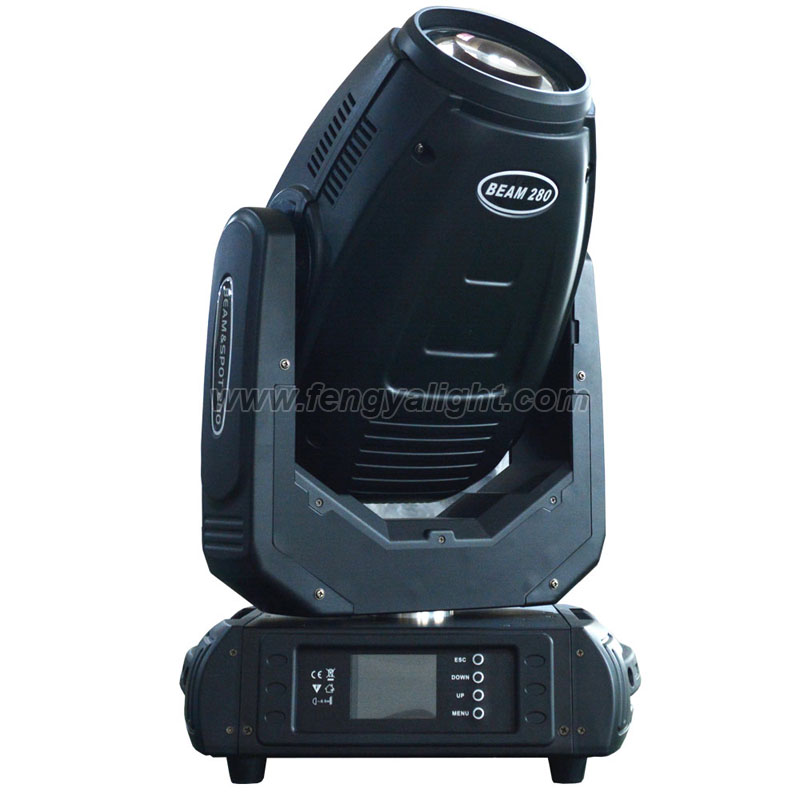

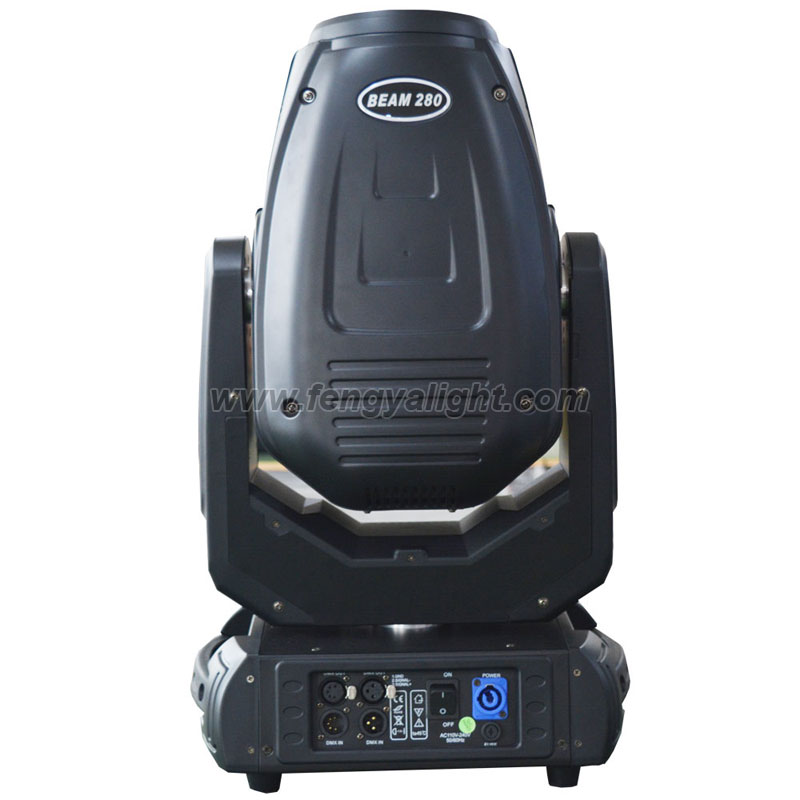

10R 280W beam spot moving head light

Model:FY-B280

Specification:

Voltage:AC110W~240V/50-60Hz

Ballast:Electronic Ballast

Lamp:YODN MSD 280W 10R

Average Lifespan: 2200Hrs

Power consumption: 470W

Lens : high precision optical lens

Color wheel: 13 dichroic filters + white

Rotating Gobo Wheel, with 9 bidirectional and indexable

gobos (outside diameter: 15.4 mm, image diameter: 13 mm)

Static Gobo wheel with 14 fixed gobos, at variable rotation

Prism 1: 8-facet circular prism rotating in both directions at different speeds

Prism 2: 6-facet linear prism rotating in both directions at different speeds

Zoom: parallel beam angel 2.5°-20° change

Wash effect : adjustable Wash effects angle

Focus: linear adjustment

Dimmer : 0-100% linear adjustment

Strobe : Double lens strobe (0.5-9 times/ second)

Pan/Tilt : X axis 540° Y axis 270°automatically accurate positioning

Fixation option: Pan/Tilt-lock mechanism

Control mode : Standard DMX512, Automatic and Master/ slave mode

Channel : 16 CHs / 24 CHs

Controller can open the lamp and reset, including delaying function

Dimension: 386 * 365 * 589  mm

Weight : 18KG

Carton box packing:49*43*58.5cm

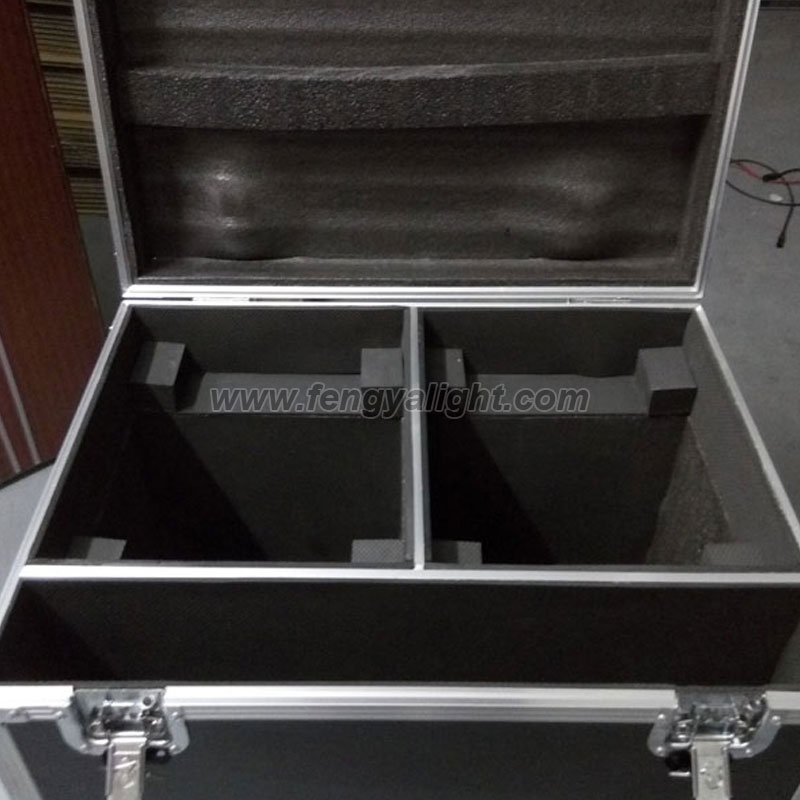

Flight case packing:760*520*820mm(2 in 1),0.32CBM

N.W.:38KGS

G.W.:65KGS
